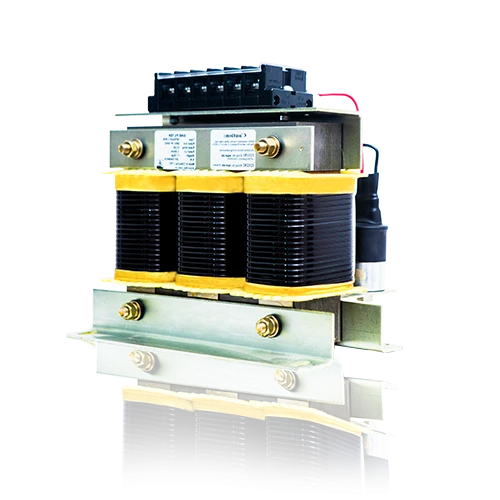

Sine Wave Filters
Muaj nuj nqi
1. Txo Overvoltage Peaks:Lowers voltage spikes los ntawm PWM, tiv thaiv lub cev muaj zog rwb thaiv tsev thiab bearings.
2. Txo lub suab nrov ntawm lub cev muaj zog: Txo lub suab nrov ntawm lub cev muaj zog thiab boosts efficiency.
3. Txhim kho PWM tso zis zoo:Txhim kho PWM tso zis, txo cov paug tawm, tshwj xeeb tshaj yog nyob rau hauv cov kab hluav taws xob ntev (txog 500m).
4. Txo EMC cuam tshuam:Txiav radiated emissions, txhim kho cov cuab yeej EMC kev ua haujlwm.
Cov khoom yog tsim tshwj xeeb rau VFD los tiv thaiv cov motors. Nws yog siv nyob rau sab tso zis ntawm zaus converters thiab hloov PWM tso zis teeb liab ntawm lub cev muaj zog mus rau hauv ib tug du sine yoj daim ntawv. Dhau li ntawm nws txo qhov tshwm sim ntawm resonance tshwm sim los ntawm kev faib capacitance thiab inductance ntawm lub cable ntev (ntev tshaj 50 meters).
Cov txiaj ntsig tseem ceeb
Advanced Magnetic Design:
Siv lub qhuav- hom hlau core tsim nrog ntau qhov sib txawv ntawm huab cua, cov sine yoj lim dej no ua haujlwm zoo tiv thaiv kev sib nqus saturation, ua tiav cov linearity siab thoob plaws txhua qhov kev hloov ntau zaus.
Tag Nrho Cov Hluav Taws Xob Hluav Taws Xob:
Raytech sine yoj lim tau du lub inverter tso zis rau hauv sine yoj ntshiab, muab kev tiv thaiv lub cev muaj zog rau koj lub cev muaj zog.
Noise txo:
Los ntawm kev tshem tawm siab -cov khoom siv zaus, peb cov ntxaij lim dej yuav luag tag nrho tshem tawm lub cev muaj zog "sib nqus suab nrov," ua rau lawv zoo tagnrho rau cov ntawv thov hauv qhov chaw ua haujlwm nrov.
Flexible Switching Compatibility:
Optimized tshwj xeeb rau cov cab kuj zaus ntawm 3kHz txog 10kHz, cov ntxaij lim dej no tau sib xws nrog cov qauv inverter niaj hnub no.
Daim ntawv thov ntawm Sine Wave Lim
1. Lub cev muaj zog-Driven Systems
2. HVAC & Tsev Automation
3. Muaj Automation & Machinery
4. Kev Siv Hluav Taws Xob Hluav Taws Xob
5. Kev siv Marine & Offshore
6. Cov khoom siv kho mob & kuaj
Sine Wave Filters Technical Specifications
|
Parameter |
Specification |
|
Nominal System Voltage (Ph-Ph) |
200V ~ 480V ±10% |
|
Kev khiav hauj lwm zaus |
5 Hz txog 120 Hz |
|
Hloov zaus |
3 kHz txog 10 kHz |
|
Rated Load zog (P) |
1.5 kW rau 315 kW |
|
Nominal Tam sim no (I) |
3.3 A rau 600 A |
|
Residual Ripple Voltage THD (Full Load) |
< 5% |
|
Qhov siab tshaj plaws Transient Overload |
2.0 × ntsuas tam sim no |
|
Qhov siab tshaj qhov ruaj khov tshaj |
1.2 × ntsuas tam sim no |
|
Tsim nta |
|
|
Txee |
Ntawm kev thov |
|
Qib Kev Tiv Thaiv |
IP00 (lwm tus neeg thov) |
|
Kev tsim kho & kev sib txuas |
Terminals los yog tooj liab bar |
|
Qhov cua |
Ntuj |
|
Mounting |
Hauv pem teb |
|
Kev teeb tsa |
Cov qauv hauv tsev |
|
Ua haujlwm kub |
Ambient: -25℃rau +40 degree |
|
txheeb ze humidity |
Tsawg dua lossis sib npaug li 85% (tsis yog-condensing) |
Vim li cas thiaj xaiv LTEC'sSine Wave Filters?
LTEC - Tsim koj lub zog nrog kev tsim kho tshiab!
Superior Motor Protection
Minimizes ua puas PWM-induced voltage spikes (dV/dt) thiab siab-frequency harmonics, ncua lub cev muaj zog lifespan los ntawm kev txo cov rwb thaiv tsev kev nyuaj siab thiab bearing tam sim no.
Txhim khu kev ntseeg tau zoo
Lim tawm electromagnetic cuam tshuam (EMI) thiab xov tooj cua- lub suab nrov zaus (RFI), ua kom muaj kev ua raws li EMC cov qauv nruj xws li IEC 61800-3.
Optimized Performance rau Long Cable Runs
Prevents voltage reflections and overvoltage in applications with extended motor cables (>50-100 ft), ib qho teeb meem tshwm sim hauv kev teeb tsa.
Zog Efficiency & Txo qhov poob
Smooths PWM waveforms mus rau ze - zoo meej sine waves, txo lub cev muaj zog cua sov thiab lub zog poob, uas txhim kho tag nrho cov system efficiency.
Kev siv ntau yam
Haum rau ntau hom kev lag luam, suav nrog HVAC, twj, conveyors, thiab cov tshuab hluav taws xob tauj dua tshiab, vim muaj kev tsim thiab kev sib raug zoo nrog cov qauv AC motors.
Ua raws li & Daim ntawv pov thawj
Tej zaum yuav ua raws li cov ntawv pov thawj thoob ntiaj teb (xws li, CCC rau Tuam Tshoj, zoo ib yam li cov qauv kev cia hluav taws xob), ua kom muaj kev lag luam nkag mus thiab ua raws li kev nyab xeeb.
Customizable Solutions
Tej zaum yuav muab cov kev teeb tsa tsim nyog (xws li, ib leeg / dual- cov ntxaij lim dej theem) kom ua tau raws li cov kev xav tau tshwj xeeb lossis ib puag ncig, zoo ib yam li cov qauv tsim qauv.
